SvelteKit (SvelteJS 5) + Supabase + Vercel

Table of Contents

• SvelteKit (SvelteJS 5) + Supabase + Vercel
  • Table of Contents
  • the problem
  • the format
  • the challenges
  • the tech
    • vercel
    • supabase
    • svelte 5 and sveltekit
  • The results
    • A reactive frontend
    • realtime updates
    • demo
  • conclusion
  • P.S

the problem

I regularly attend volleyball tournaments hosted around the Buffalo area. These events are always a great deal of fun, and we are fortunate to have venues and individuals willing to organize them.

That being said, creating a balanced “round robin” schedule and keeping teams on schedule often requires significant effort. The difficulties associated with creating these schedules will be discussed below.

In short, the schedules are usually handmade, and teams frequently end up playing consecutive games in a row or sitting idle for too long, resulting in grumbling and general dissatisfaction.

the format

Typically, tournaments follow this format:

1. Play X games of pool play — This is for seeding before going into playoffs.
2. During pool play, teams are expected to ref other teams’ matches (this means refs need to be pulled from teams not playing). But it is considered bad practice to play a game, ref and then play again with no ‘downtime’ between.
3. Teams should ref the same amount of games where possible.
4. Teams should sit in between games logical amounts.

the challenges

The main issues with creating a schedule by hand are that teams often end up playing multiple games in a row or sitting for too long.

Just recently I was at a tournament that had three sand courts available for use, the schedule has been planned out ahead of time to optimally use these courts for ten teams. Then day of the event, 15 minutes before start time, an 11th team showed up. While we were able to get a pre-fabricated 11 team round robin schedule from online, we couldn’t balance the schedule in a way that would allow us to utilize all three courts. There was general chaos around managing the schedule that day.

Compounding these difficulties, there are often only a few copies of the schedule available, whether due to last-minute changes or a lack of physical copies. This means that a central schedule is typically taped up for participants to view, leading to teams often being slow to realize when they should be on the court or, even more so, when they should be refereeing.

I knew I wanted to build something fun and educational using my favorite tech stack (SvelteKit and Supabase). This is the problem I chose to tackle, even though I realize that scheduling tournaments is a problem that has already been solved in many ways.

the tech

vercel

“Vercel provides the developer tools and cloud infrastructure to build, scale, and secure a faster, more personalized web.”

Vercel is an amazing product and a logical choice for deploying my SvelteKit infrastructure. By utilizing the Vercel adapter for SvelteKit. Getting my application up and running in the cloud only took minutes. By using Vercel, I had easy access to logs, and I find it much more simple than using the AWS console! Deployments for branches and PRs are automatically generated and reviewable.

supabase

Another product that has truly impressed me!

“Supabase is an open-source Firebase alternative. Start your project with a Postgres database, Authentication, instant APIs, Edge Functions, Realtime subscriptions, Storage, and Vector embeddings.”

Supabase has made things such as Auth and real-time functionality a piece of cake! Supabase handles user Auth and email (amongst other Auth/Notification methods) but also makes developing a dream. Typically creating and managing a local test DB can be a pain, and I truly dislike when engineering teams all use one dev cloud test DB (you never know how messed up the DB state is).

Supabase makes it easy to spin up a local Supabase web studio along with a database instance to allow for easy and effective DB testing and version control!

svelte 5 and sveltekit

Svelte is amazing, and working with Svelte 5 has felt really good! Switching to runes was actually very straightforward and along the way I feel I’ve learned some better practices as far as reactivity in the frontend goes.

The results

A reactive frontend

When logged in as an admin user, several CRUD options are available, such as managing Settings, Teams, and Matches, with Brackets coming soon.

I aimed to make the UI as modern and responsive as possible. By using Superforms’ use:enhance, form submissions no longer trigger a page reload, making updates to Event values feel seamless and fast. However, this introduced a challenge: What happens when the UI loads and mounts components?

For instance, on initial page load, I load TypeScript objects for a specific event ID and use prop drilling to pass the Event (settings), Teams, and Matches class instances to various components. But if one component updates one of these class instances, other components that depend on the same data must also be aware of these changes.

For example, if I’ve generated Matches for pool play and the UI displays them on an already mounted component, what happens if I change a team name on the Teams tab? Naturally, I’d want the Matches tab to reactively update and display the new team name across all relevant matches.

To handle this, I used the following Svelte 5 syntax in our +page.svelte route:

Raw

We need attributes on our Teams class to be stateful:

Raw

So we use the $state feature in Svelte 5 (instead of team.ts as the file name it is now teams.svelte.ts)!

This means that the UI can now be reactive to when the teams attribute on a Teams class instance changes! (It does mean we are using a proxy value which can cause issues in other places if you want the values. Can use $state.snapshot)

So now when I render a match instead of reloading all my matches that contain the updated team I can do something like this:

Raw

Where if we update our Team value it will reactively update the matches component UI!

realtime updates

One of the features I was excited to try out from Supabase was the easy real-time updates that the JS SDK could subscribe to. With a little bit of code:

Raw

Realtime updates are displayed on the matches tab:

I could easily have my Svelte components update in real-time when match results were input. This means when an event organizer puts results in, users who have the event open on their mobile devices will get the update pushed straight to their UI without a page refresh.

demo

conclusion

Building a scheduling tool for volleyball tournaments using SvelteKit and Supabase has been a fun and educational experience. At the time of writing this I will be piloting the app for a tournament this coming weekend, so hopefully disaster does not ensue!

P.S

I am currently looking for my next career opportunity, so if anyone knows of anyone hiring for Svelte or similar positions, please let me know!

Thanks for reading!

Getting Started With Svelte-Kit Session Auth

At the time of writing this Svelte-kit is still experimental but we were still able to get some
basic session auth setup by doing the following.

Creating our new project

1

npm init svelte@next hello-world

Go ahead and type Y!

Now we have a new directory that looks like the following:

For now lets create a simple file based “database” to store our sessions:

touch sessions.json

Raw

Now we want to create another special directory for Svelte-kit, the src/setup directory.

Inside that directory we will have the following two files:

index.js

Raw

db.js

Raw

The setup/index.js file runs for each new request made to the web application.
Meaning that so long as we have the cookie with the key value my_web_app-123 we will be able
to authenticate our user without them needing to sign in again.

To add the cookie to the users browser we can use the Set-cookie header when returning
the login request:

Raw

Using RT To Track My Finances

I use RT to automatically track my finances, by using the free Plaid API I am able to pull in transactions from my bank account automatically and create tickets in RT.

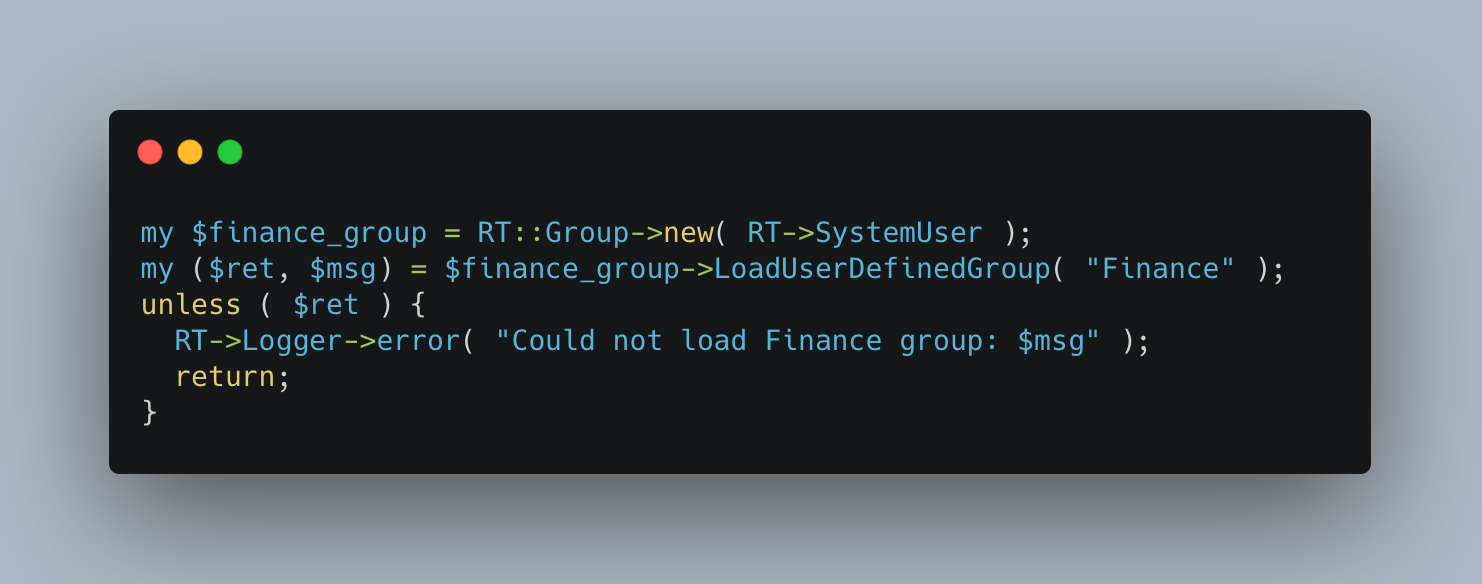

First I start by loading an RT group that has each of my users who are using my RT to track their finances:

Raw

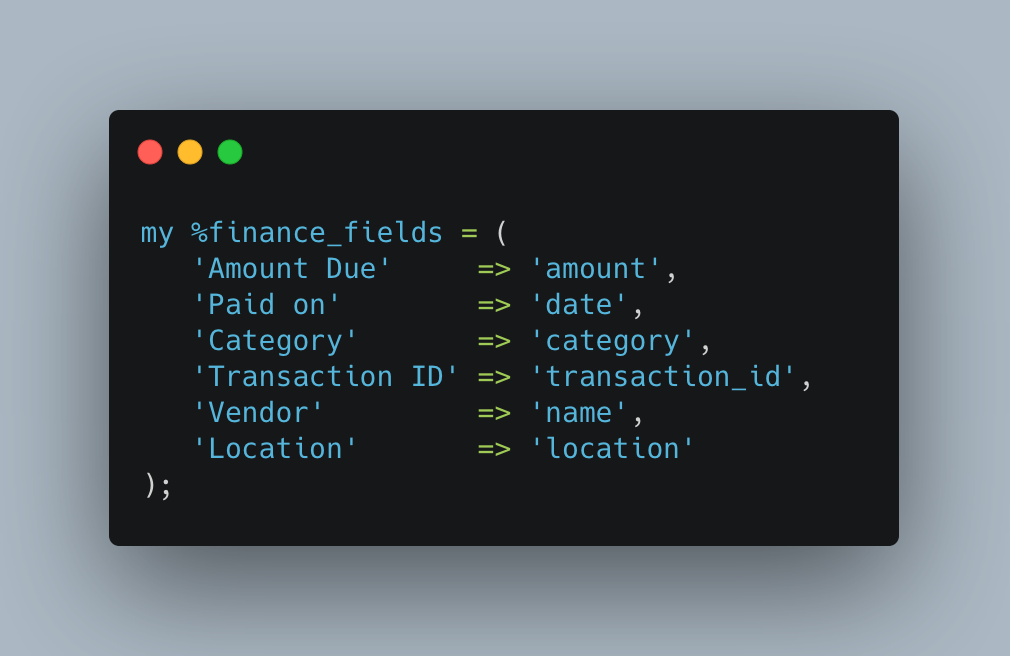

Then I map the RT fields to the Plaid API fields that I would like to populate on my finance tickets:

Raw

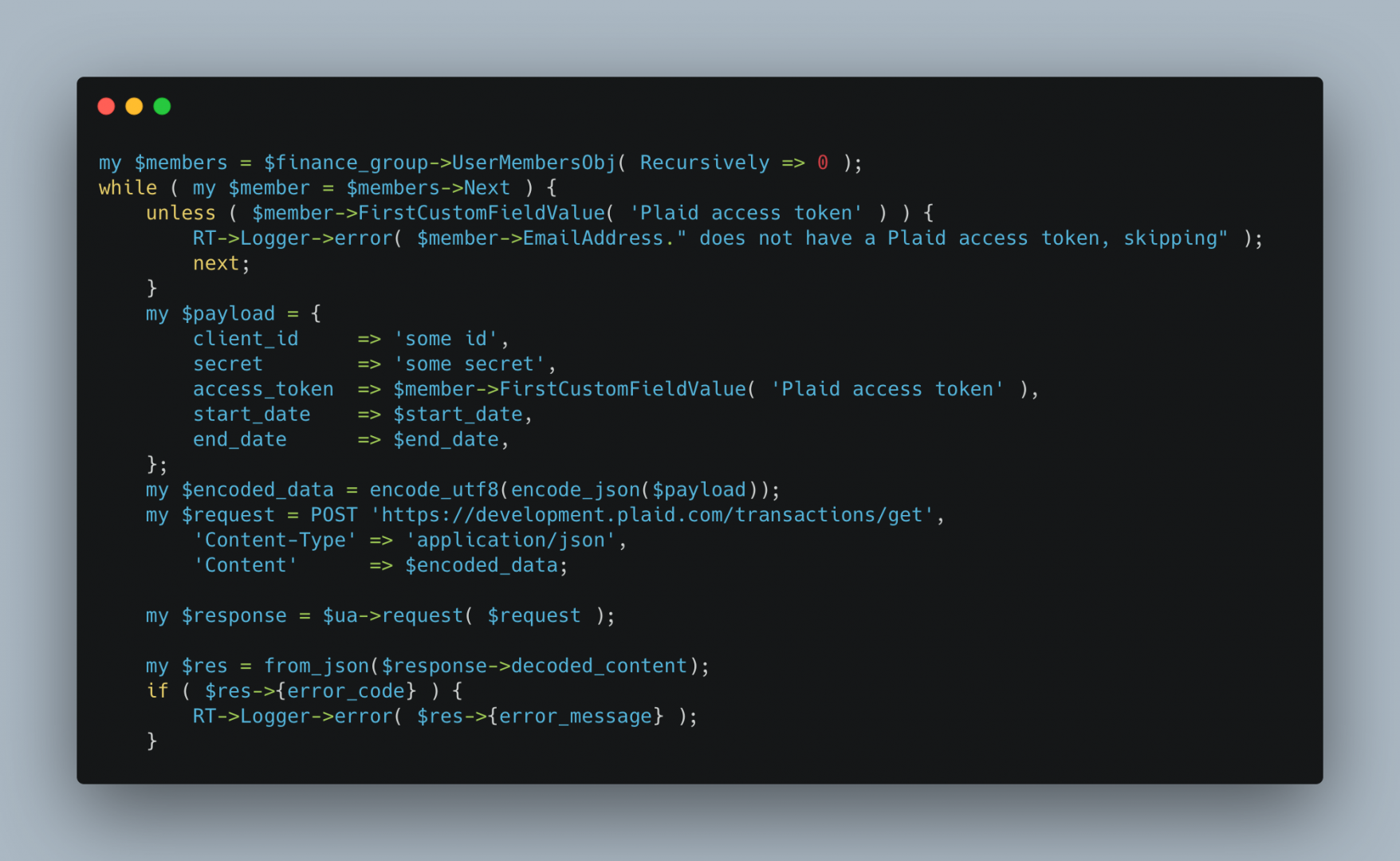

I do some date calculations that I won’t include here for sake of keeping this post short, once I have my date range of transactions I am looking for I can start looping over my users:

Raw

In the above code block you can see that I am querying the Plaid transactions API over a date range for my user. Each user record has a custom field “Plaid access token” which is how we only grab that users transactions.

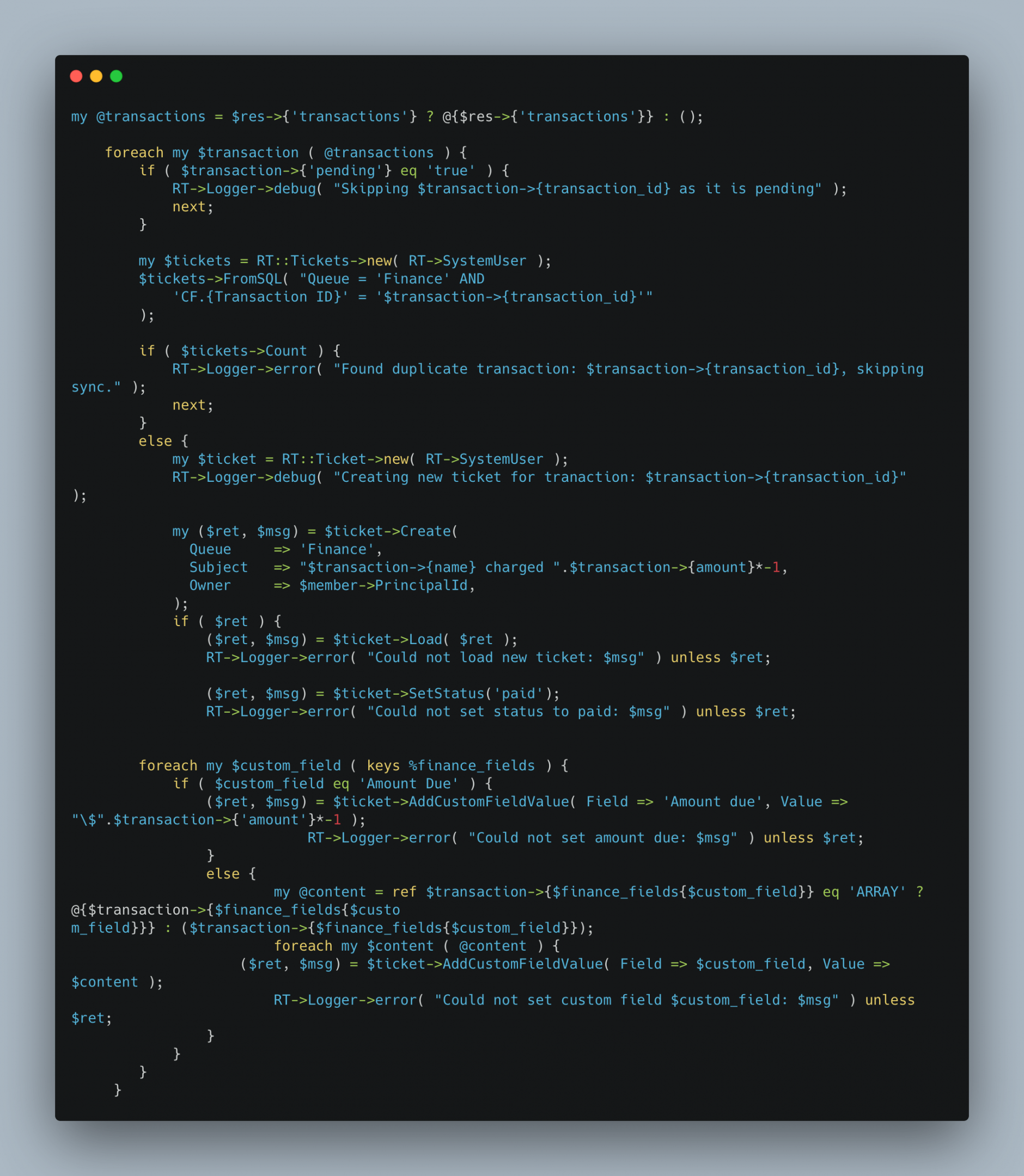

Now its time to get to the heart of this script and create some tickets from the transactions I found:

Raw

Now that we have some data we can create reports like this!
financial planner screenshot
